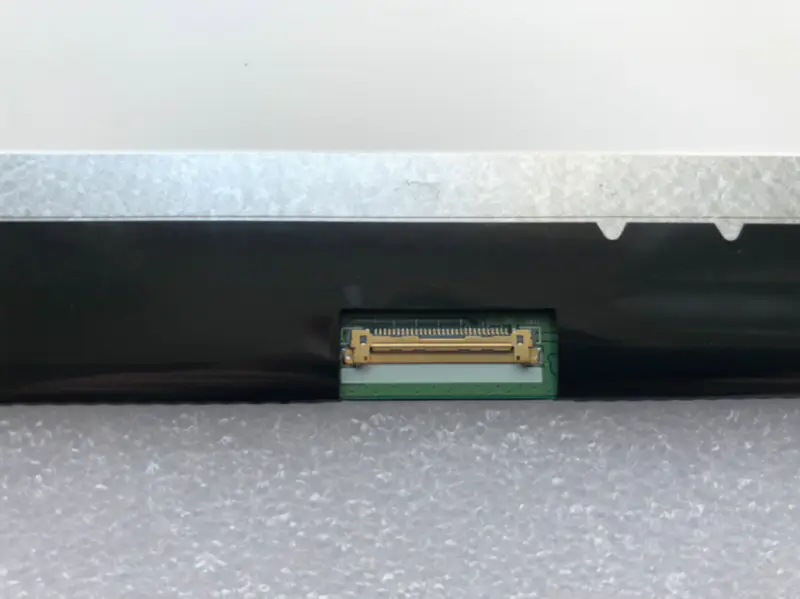

Almost new B140XTN02.E AUO LCD panel replacement

Bilder

Spesifikasjoner

Manufacturer：AUO
Model Name：B140XTN02.E (AUO2E3C)
Screen Size：14.0 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：1366(RGB)×768 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 309.399 × 173.952 (H×V)
Outline(mm)：320.4 × 205.1× 3 (H×V×D)
Bezel Area(mm)： –
Treatment： Glare (Haze 0%), Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：400 : 1 (Typ.) (TM)
Viewing Angle： 45/45/15/35 (Typ.)(CR≥10)
Response： 8 (Typ.)(Tr+Td) ms
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 45%(CIE1931)
Backlight：WLED, 15K hours, With LED Driver
Outline Shape： Slim (PCBA Flat, Depth ≤3.2mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：eDP (1 Lane), Connector, 30 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
