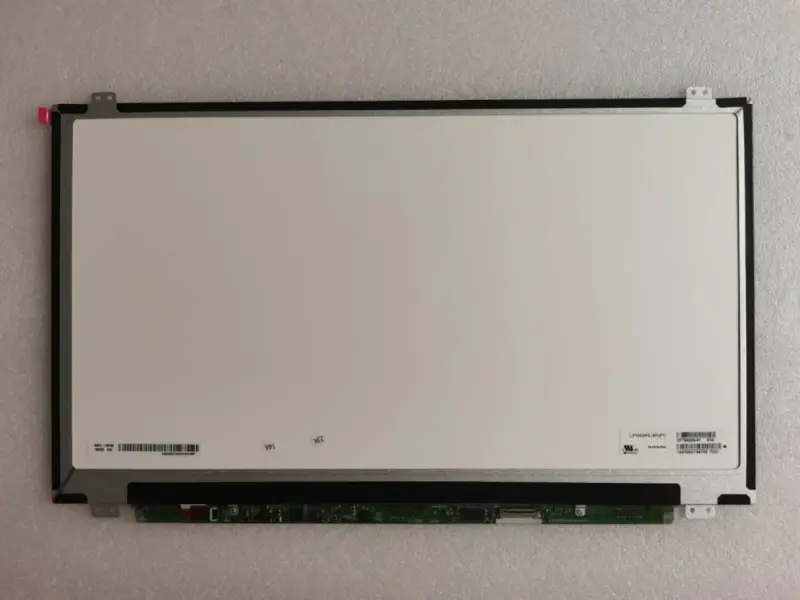

Almost new LP156WF6-SPP1 LG Display LCD panel replacement

Bilder

Spesifikasjoner

Manufacturer：LG Display
Screen Size： 15.6 inch
Pixel Number： 1920(RGB)×1080(FHD)
Active Area(mm)：344.16 × 193.59 (H×V)
Bezel Area(mm)：347.45 × 196.8 (H×V)
Luminance：300 (Typ.)(cd/m2)
Viewing Angle：80/80/80/80 (Min.)(CR≥10)
Good View at：Symmetry
Color Depth：262K
Outline Shape： Slim (PCBA Flat, Depth ≤3.2mm)
Refresh Rate：60Hz
Model Name：LP156WF6-SPP1
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 359.5 × 223.8 × 3.2 (H×V×D)
Treatment：Antiglare
Contrast Ratio： 700 : 1 (Typ.) (TM)
Work Mode： AH-IPS, Normally Black, Transmissive
Response：25 (Typ.)(Tr+Td) ms
Backlight： WLED , 15K hours , With LED Driver
Used for： Laptop,
Touchscreen：Without
Signal Type：eDP (2 Lanes), Connector, 30 pins
Voltage Supply： 3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
