| MPN: | 9LG1224A1D001 |
| Noise: | 48.0dB(A) |
| Air Flow: | 137.8 CFM (3.85m³/min) |
| Power (Watts): | 8.88 W |
| Voltage – Rated: | 24VDC |
| RPM: | 3700 RPM |
| Avslutning: | 3 Wire Leads |
| Produsent: | Sanyo Denki |
| Size / Dimension: | Square – 120mm L x 120mm H |
| Bredde: | 38.00mm |
| Static Pressure: | 0.470 in H2O (117.1 Pa) |
| Bearing Type: | Ball |
| Fan Type: | Tubeaxial |
| Features: | Locked Rotor Sensor |
| Ingress Protection: | – |
| Operating Temperature: | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency: | cURus, TUV |
| Weight: | – |
| Serie: | San Ace 120L |
| Current Rating (Amps): | 0.370A |
| Voltage Range: | 15 ~ 30VDC |
| Material – Frame: | Aluminum |
| Material – Blade: | Plastic |
| Lifetime @ Temp.: | 180000 Hrs @ 60°C |

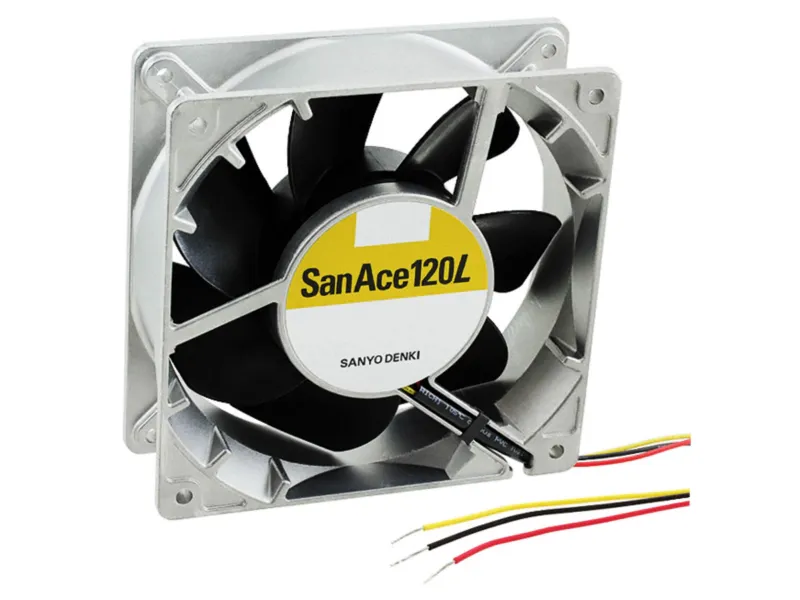

| Detailed Description: | Fan Tubeaxial 24VDC Square – 120mm L x 120mm H Ball 137.8 CFM (3.85m³/min) 3 Wire Leads |
