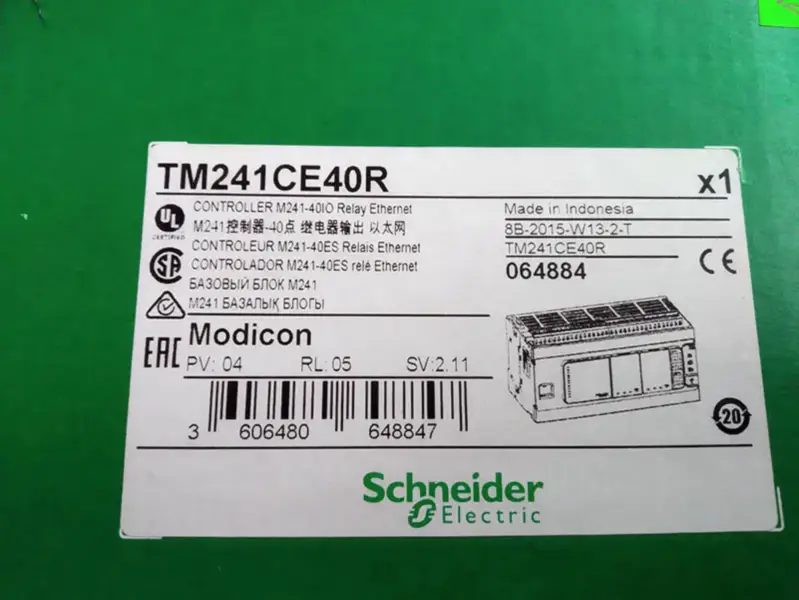

SCHNEIDER TM241CE40R logic controller

SCHNEIDER TM241CE40R CONTROLLER

TM241CE40R Specification

Produktmerke:SCHNEIDER
Part Number:TM241CE40R TM241CE40R
supply voltage limits: 85…264 V
Network Frequency: 50/60 Hz
discrete input logic: Sink or source
discrete input voltage: 24 V
discrete input voltage type: DC
voltage state 1 guaranteed: >= 15 V input
voltage state 0 guaranteed: <= 5 V input
discrete input current: 7 mA input
input impedance: 4.7 kOhm input
response time: 50 µs turn-on, I0…I15 input
configurable filtering time: 1 µs fast input
discrete output logic: Positive logic (source)
transmission rate
1.2…115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485
1.2…115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232
480 Mbit/s 9.84 ft (3 m) USB
10/100 Mbit/s Ethernet
maximum number of connections
8 Modbus server
8 SoMachine protocol
10 web server
4 FTP server
16 Ethernet/IP target
8 Modbus client
number of slave
64 Modbus TCP
16 EtherNet/IP
Height: 3.54 in (90 mm)
Depth: 3.74 in (95 mm)
Width: 7.48 in (190 mm)
Net Weight: 1.37 lb(US) (0.62 kg)
Package weight(Lbs): 32.91 oz (933.0 g)
TM241CE40R condition: New
