Spesifikasjoner
Merkenavn: Asus

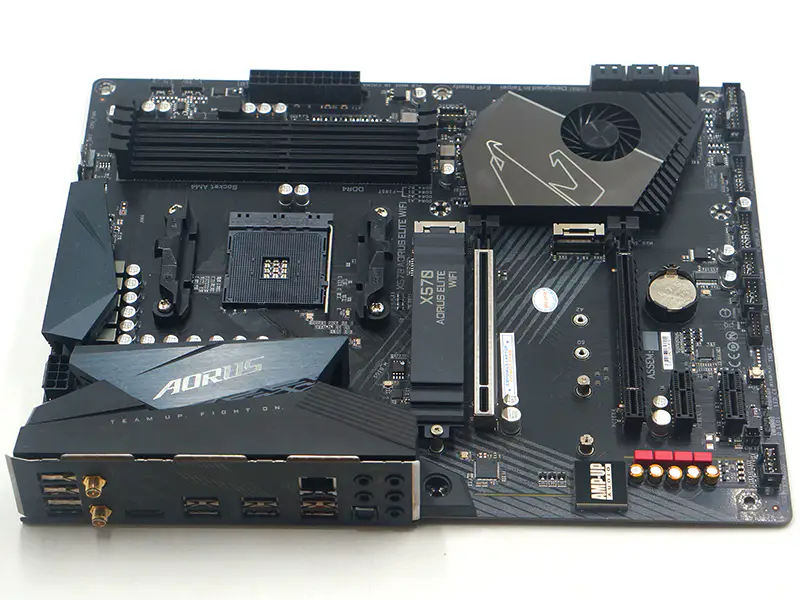

Item Model: X570 AORUS ELITE WIFI
Chipset: AMD X570
CPU Socket: Socket AM4
CPU description: Supports 3rd/2nd GEN AMD Ryzen Processors, 2nd Generation AMD Ryzen with Radeon Vega Graphics Processors, AMD Ryzen with Radeon Vega Graphics CPU
Med CPU: nei
RAM-bank: 4×DDR4 DIMM
Maks minnekapasitet: 128 GB
Memory description:
3rd Generation AMD Ryzen CPU:
Supports DDR4 4400(O.C.)/4300(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200/2933/2667/2400/2133MHz
2nd Generation AMD Ryzen Processors/2nd Generation AMD Ryzen with Radeon Vega Graphics Processors/AMD Ryzen with Radeon Vega Graphics CPU:
Supports DDR4 3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/2933/2667/2400/2133MHz
PCI-E type: PCI-E 4.0
PCI-E slot 3rd generation AMD Ryzen CPU:
1×PCI-E x16 slot, supports PCI-E 4.0 and x16 operating specifications (PCIEX16)
2nd generation AMD Ryzen CPU:
1×PCI-E x16 slot, supports PCI-E 3.0 and x16 operating specifications (PCIEX16)
2nd generation AMD Ryzen with Radeon Vega Graphics processor/AMD Ryzen with Radeon Vega Graphics CPU:
1×PCI-E x16 slot, supports PCI-E 3.0 and x8 operating specifications (PCIEX16)
Memory slots:
3rd Generation AMD Ryzen CPU:
1×M.2 slot supports Socket 3, M key, type 2260/2280 SATA and PCI-E 4.0 x4/x2 SSD
Based on chipset:
1×M.2 slot on the back of the motherboard
6×SATA III interfaces
Grensesnitt for harddisk: SATA
FSB / HT:Mhz
I/O Interface:
4×USB3.2 Gen1 ports on the rear IO
Based on the chipset:
1×USB Type-C port, supports USB3.2 Gen 2, needs to be connected from the motherboard USB port via a cable
2×USB3.2 Gen 2 Type-A ports (red) on the rear IO
4×USB3.2 Gen 1 ports need to be connected from the motherboard USB port via a cable
Based on the chipset + 2 USB2.0 Hubs:
8×USB2.0/1.1 ports (4 on the rear IO, 4 need to be connected from the motherboard USB port via a cable)
Ports:1x HDMI
Formfaktor: ATX
Dimensjon: 30,5×24,4 cm
Formfaktor:CEB
Bruksområde: Skrivebord
Pakke: Antistatisk pakke
Tilstand: Brukt, Testet
