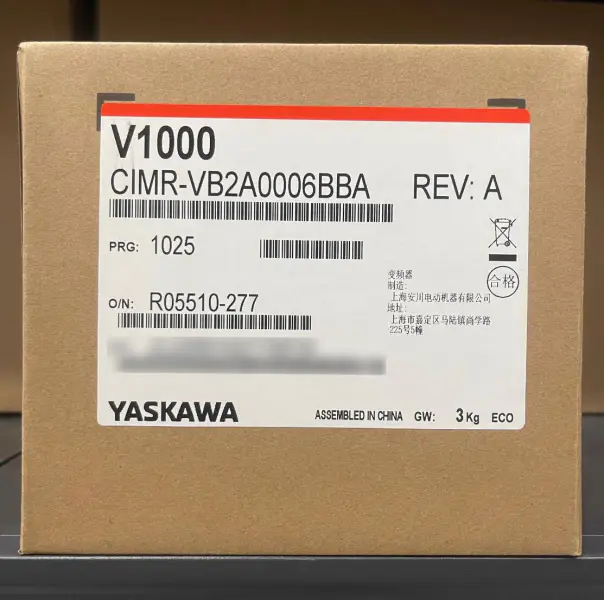

Yaskawa CIMR-VB2A0006BBA Inverter

Bilder

Spesifikasjoner

• INPUT POWER SUPPLY
• 200 V

• RATED OUTPUT CURRENT (HD)
• 5 A

• RATED OUTPUT CURRENT (ND)
• 6 A

• OVERLOAD TOLERANCE (ND)
• 120% for 60 s

• OVERLOAD TOLERANCE (HD)
• 150% for 60 s

• MAX. APPLICABLE MOTOR POWER (HD)
• 0.75 kW

• MAX. APPLICABLE MOTOR POWER (ND)
• 1.1 kW

• INPUT POWER PHASES
• 3-phase

• EMC FILTER
• x No

• MOTOR TYPE
• Permanent magnet motor, Induction motor

• STANDARDS COMPLIANCE
• cUL, CE, RoHS, UL, UKCA

• AMBIENT TEMPERATURE (MIN)
• -10 °C

• AMBIENT TEMPERATURE (MAX)
• 50 °C

• MAX. HUMIDITY (NON-CONDENSING)
• 95 %

• MAX. ALTITUDE (WITHOUT DERATING)
• 1,000 m

• MAX. ALTITUDE (WITH DERATING)
• 3,000 m

• HEIGHT
• 128 mm

• WIDTH
• 68 mm

• DEPTH
• 128 mm

• WEIGHT
• 1,1 kg

• COOLING METHOD
• Coldplate, Air cooling

• ENCLOSURE
• IP20/UL Open Type

• ENVIRONMENTAL SPECIFICATIONS
• Standard

• ANALOG INPUT
• 2

• ANALOG OUTPUT
• 1

• DIGITAL INPUT
• 6

• DIGITAL OUTPUT
• 3

• SAFETY LEVEL
• SIL2

• PERFORMANCE LEVEL
• PL d

• TORQUE CONTROL
• Not available

• BRAKING TRANSISTOR
• Ekstern

• MOTOR THERMAL PROTECTION
• Standard

• MAX OUTPUT FREQUENCY
• 400 Hz
